First of all, i wish to say big Thank You for you excellent work! Widget just beautiful!
I use it with MAX! thermostats and it get big thumbs up, especially from my wife
.
I made few improvements, may be it will be useful for someone.
First, operations of my thermostats linked to windows open state, so I added icon representing window state. It accept ether item or group and expect states OPEN or CLOSED. Unfortunately, f7 icon set does not include windows icons, so I use icons from openhab classic set.
Next, I added ability to display thermostat mode. It expect string item and display it as is. Maybe it need to be made as a menu, but I’m almost never switch thermostat mode manually.
Last but not least I added ability to display heating status, like it is done in OH locations badges. But I’m don’t like default OH HVAC icon, so instead string “HEATING” change color then heating active. Expect simple binary item with ON/OFF state.

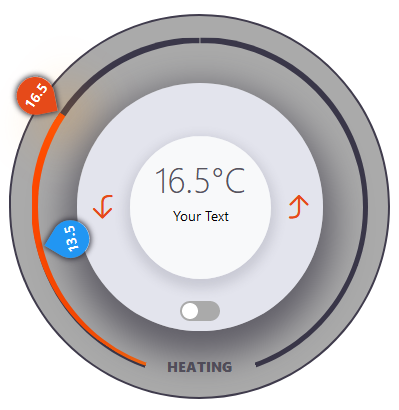

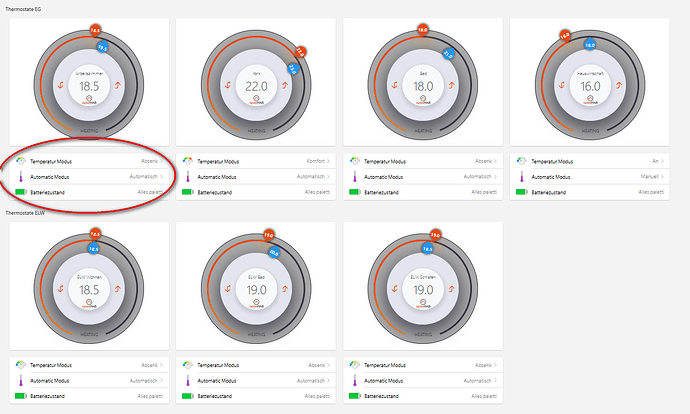

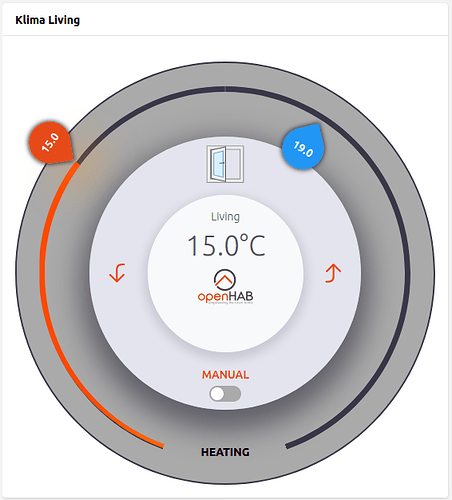

Screenshots:
Code:
uid: HeatingCSS_1.8
tags:
- heating
props:
parameters:
- description: eg. living room
label: location
name: location
required: false
type: TEXT
- description: Visual size of the control in px (default 400px), without a size the design is responsive
label: size [px]
name: size
required: false
type: TEXT
- description: Minimum value
label: minTemp
name: minTemp
required: true
type: TEXT
- description: Maximum value
label: maxTemp
name: maxTemp
required: true
- context: item
description: Item to control
label: Set point Item
name: setPointItem
required: true
type: TEXT
- context: item
label: Item for current temperature
name: currentPointItem
required: true
type: TEXT
- context: item
label: Item to toggle something
name: toggleItem
required: false
type: TEXT
- context: item
label: Item to display window state
name: windowItem
required: false
type: TEXT
- context: item
label: Item to display thermostat mode
name: modeItem
required: false
type: TEXT
- context: item
label: Item to display heater state
name: heaterItem
required: false
type: TEXT
- description: Control item unit eg °C
label: unit
name: unit
required: false
type: TEXT
- label: Main-Color Thermostat
name: colorThermostat
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color control ring
name: colorControlRing
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color buttons
name: colorButton
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color center
name: colorCenter
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color Typo
name: colorTypo
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color setPoint Marker
name: colorSetMarker
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color currentPoint Marker
name: colorCurrentMarker
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color bar linear gradient startPoint
name: colorBarStartPoint
required: false
type: TEXT
groupName: colors
advanced: true
- label: Color bar linear gradient endPoint
name: colorBarEndPoint
required: false
type: TEXT
groupName: colors
advanced: true
parameterGroups:
- name: colors
label: Color-Settings
timestamp: Feb 12, 2021, 4:56:28 PM
component: f7-card
config:
title: "=(props.location) ? 'Klima ' + props.location : ''"
slots:
default:
- component: f7-card-content
slots:
default:
- component: f7-row
config:
resizableFixed: true
resizable-absolute: true
class:
- justify-content-center
slots:
default:
- component: f7-block
config:
class: thermostat
style:
flex-shrink: 0
--f7-block-margin-vertical: 0px
--f7-block-padding-vertical: 0px
--f7-block-padding-horizontal: 0px
padding-left: 0px
padding-top: "=props.size ? '': '100%'"
width: "=props.size ? Number(props.size)+'px' : '100%'"
height: "=props.size ? Number(props.size)+'px' : '100%'"
background: "=props.colorThermostat ? props.colorThermostat : 'var(--f7-toggle-inactive-color)'"
border-radius: 50%
border: 2px solid rgb(64, 60, 77)
slots:
default:
- component: f7-block
config:
class: bar
style:
margin-top: 0px
position: absolute
width: "=props.size ? (Number(props.size)*0.89) +'px' : '89%'"
height: "=props.size ? (Number(props.size)*0.89) +'px' : '89%'"
top: 50%
left: 50%
transform: translate(-50%, -50%)
border-radius: 50%
slots:
default:
- component: f7-block
config:
class: inner_bar
style:
margin-top: 0
position: absolute
top: 50%
left: 50%
transform: translate(-50%, -50%)
width: "=props.size ? (Number(props.size)*0.86) +'px' : '97%'"
height: "=props.size ? (Number(props.size)*0.86) +'px' : '97%'"
border-radius: 100%
background-color: "=props.colorThermostat ? props.colorThermostat : 'var(--f7-toggle-inactive-color)'"
z-index: 4 !important
slots:
default:
- component: f7-block
config:
style:
background: "='conic-gradient(transparent 0deg 160deg, ' + (props.colorThermostat ? props.colorThermostat : 'var(--f7-toggle-inactive-color)') + ' 160deg 200deg, transparent 200deg 360deg)'"
content: ""
display: block
position: absolute
width: 100%
height: 100%
bottom: "=props.size ? '-7px' : '-7px'"
left: 50%
transform: translate(-50%)
- component: f7-block
config:
class: hold left
style:
margin-top: 0px
position: absolute
width: 100%
height: 100%
clip-path: "=props.size ? 'inset(0px 0px 0px ' + (Number(props.size)*0.89/2) + 'px)' : 'inset(0% 0% 0% 50%)'"
border-radius: 100%
background-color: rgb(58, 55, 73)
slots:
default:
- component: f7-block
config:
class: fill fill1
style:
margin-top: 0px
position: absolute
width: 100%
height: 100%
border-radius: 100%
clip-path: "=props.size ? 'inset(0px ' + (Number(props.size)*0.89/2) + 'px 0px 0px)' : 'inset(0% 50% 0% 0%)'"
background: "=props.colorBarStartPoint && props.colorBarEndPoint ? '-webkit-linear-gradient(top, ' + props.colorBarEndPoint + ' 20%,' + props.colorBarEndPoint + ' 100%)' : '-webkit-linear-gradient(top, rgb(255, 73, 0) 20%,rgb(255, 73, 0) 100%)'"
z-index: 1 !important
animation: left 0.3s linear both
animation-delay: 1s
transition: transform 0.6s
transform: "=(items[props.setPointItem].state.split(' ')[0] >= (((Number(props.maxTemp) - Number(props.minTemp)) / 2) + Number(props.minTemp)) && items[props.setPointItem].state.split(' ')[0] <= Number(props.maxTemp) ? 'rotate('+(320/(Number(props.maxTemp)-Number(props.minTemp))*(items[props.setPointItem].state.split(' ')[0]-Number(props.minTemp))-160)+'deg)' : (items[props.setPointItem].state.split(' ')[0] > Number(props.maxTemp)) ? 'rotate(180deg)' : '')"
- component: f7-block
config:
class: hold right
style:
margin-top: 0px
position: absolute
width: 100%
height: 100%
clip-path: "=props.size ? 'inset(0px 0px 0px ' + (Number(props.size)*0.89/2) + 'px)' : 'inset(0% 0% 0% 50%)'"
border-radius: 100%
background-color: rgb(58, 55, 73)
z-index: 3 !important
transform: rotate(180deg)
slots:
default:
- component: f7-block
config:
class: fill
style:
margin-top: 0px
position: absolute
width: 100%
height: 100%
border-radius: 100%
z-index: 3 !important
animation: right 1s linear both
transition: transform 0.6s
- component: f7-block
config:
class: fill fill2
style:
position: absolute
margin-top: 0px
width: 100%
height: 100%
border-radius: 50%
z-index: 3 !important
clip-path: "=props.size ? 'inset(0px '+ (Number(props.size)*0.89/2) + 'px 0px 0px)' : 'inset(0% 50% 0% 0%)'"
background: "=props.colorBarStartPoint && props.colorBarEndPoint ? '-webkit-linear-gradient(top, ' + props.colorBarEndPoint + ' 40%,' + props.colorBarStartPoint + ' 100%)' : '-webkit-linear-gradient(top, rgb(255, 73, 0) 40%,rgb(255, 158, 35) 100%)'"
transform: "=(items[props.setPointItem].state.split(' ')[0] <= (((Number(props.maxTemp) - Number(props.minTemp)) / 2) + Number(props.minTemp)) && items[props.setPointItem].state.split(' ')[0] >= Number(props.minTemp) ? 'rotate('+(320/(Number(props.maxTemp)-Number(props.minTemp))*(items[props.setPointItem].state.split(' ')[0]-Number(props.minTemp))+20)+'deg)' : (items[props.setPointItem].state.split(' ')[0] > (((Number(props.maxTemp) - Number(props.minTemp)) / 2) + Number(props.minTemp))) ? 'rotate(180deg)' : '')"
- component: f7-block
config:
class: span
style:
margin-top: 0px
width: "=props.size ? (Number(props.size)*0.89) +'px' : '100%'"
font-weight: "=props.size ? (Number(props.size)*2) +'px' : 'calc(var(--f7-list-item-title-font-weight)*2)'"
position: absolute
bottom: 0px
text-align: center
text-transform: uppercase
font-size: "=props.size ? (Number(props.size)*0.0375) +'px' : '1em'"
color: "=props.colorTypo ? props.colorTypo : 'rgb(87, 84, 95)'"
z-index: 99 !important
slots:
default:
- component: Label
config:
text: Heating
style:
color: "=(items[props.heaterItem].state === 'ON') ? 'orange' : 'black'"
- component: f7-block
config:
class: shadow
style:
margin-top: 0px
position: absolute
top: 50%
left: 50%
transform: "=(items[props.setPointItem].state.split(' ')[0] >= Number(props.minTemp) && items[props.setPointItem].state.split(' ')[0] <= Number(props.maxTemp) ? 'translate(-50%, -50%) rotate('+(320/(Number(props.maxTemp)-Number(props.minTemp))*(items[props.setPointItem].state.split(' ')[0]-Number(props.minTemp))-160)+'deg)' : 'translate(-50%, -50%) rotate(0deg)')"
width: "=props.size ? (Number(props.size)*0.0625) +'px' : '6.25%'"
height: 86%
text-align: center
transition: 0.7s ease
animation: shadow 1.4s ease-out both
slots:
default:
- component: f7-block
config:
class: shadow-cube
style:
margin-top: 0px
position: absolute
top: 0
width: "=props.size ? (Number(props.size)*0.0625) +'px' : '100%'"
height: 0px
box-shadow: "=props.size ? '0 0 ' + (Number(props.size)*0.1125) +'px ' + (Number(props.size)*0.0325) + 'px ' + (props.colorSetMarker ? props.colorSetMarker : 'rgba(255, 158, 35, 0.5)'): '0 0 45px 13px rgba(255, 158, 35, 0.5)'"
- component: f7-block
config:
class: markerContainer
style:
pointer-events: none
margin-top: 0px
position: absolute
top: 50%
left: 50%
transform: "=(items[props.currentPointItem].state.split(' ')[0] >= Number(props.minTemp) && items[props.currentPointItem].state.split(' ')[0] <= Number(props.maxTemp) ? 'translate(-50%, -50%) rotate('+(320/(Number(props.maxTemp)-Number(props.minTemp))*(items[props.currentPointItem].state.split(' ')[0]-Number(props.minTemp))-160)+'deg)' : 'translate(-50%, -50%) rotate(0deg)')"
width: "=props.size ? (Number(props.size)*0.1) +'px' : '10%'"
height: 100%
text-align: center
transition: 0.7s ease
opacity: 1
z-index: 99 !important
slots:
default:
- component: f7-block
config:
class: markerCurrent
style:
margin-top: 0px
width: "=props.size ? (Number(props.size)*0.1) +'px' : '100%'"
height: "=props.size ? (Number(props.size)*0.1) +'px' : ''"
padding-top: "=props.size ? '' : '100%'"
background: "=props.colorCurrentMarker ? props.colorCurrentMarker : 'rgb(33, 150, 243)'"
position: absolute
transform: translate(-50%,-50%) rotate(45deg)
left: 50%
top: "=props.size ? (Number(props.size)*0.14) +'px' : '15%'"
border-radius: 0% 50% 50% 50%
box-shadow: 0 0 5px 1px rgb(48, 46, 56)
slots:
default:
- component: f7-block
config:
class: number
style:
margin-top: 0px
position: absolute
top: 50%
left: 50%
transform: translate(-50%, -50%) rotate(-45deg)
text-align: center
slots:
default:
- component: Label
config:
text: =items[props.currentPointItem].state.split(' ')[0]
style:
font-size: "=props.size ? (Number(props.size)*0.04) +'px' : '14px'"
color: white
font-weight: bold
- component: f7-block
config:
class: markerContainer
style:
pointer-events: none
margin-top: 0px
position: absolute
top: 50%
left: 50%
transform: "=(items[props.setPointItem].state.split(' ')[0] >= Number(props.minTemp) && items[props.setPointItem].state.split(' ')[0] <= Number(props.maxTemp) ? 'translate(-50%, -50%) rotate('+(320/(Number(props.maxTemp)-Number(props.minTemp))*(items[props.setPointItem].state.split(' ')[0]-Number(props.minTemp))-160)+'deg)' : 'translate(-50%, -50%) rotate(0deg)')"
width: "=props.size ? (Number(props.size)*0.1) +'px' : '10%'"
height: 100%
text-align: center
transition: 0.7s ease
opacity: 1
z-index: 99 !important
slots:
default:
- component: f7-block
config:
class: markerSet
style:
margin-top: 0px
width: "=props.size ? (Number(props.size)*0.1) +'px' : '100%'"
height: "=props.size ? (Number(props.size)*0.1) +'px' : ''"
padding-top: "=props.size ? '' : '100%'"
background: "=props.colorSetMarker ? props.colorSetMarker : 'rgb(230, 74, 25)'"
position: absolute
transform: translate(-50%,-50%) rotate(-45deg)
left: 50%
top: "=props.size ? (Number(props.size)*Number(-0.0125)) +'px': '-2%'"
border-radius: 50% 50% 50% 0
box-shadow: 0 0 5px 1px rgb(48, 46, 56)
z-index: 100 !important
slots:
default:
- component: f7-block
config:
class: number
style:
margin-top: 0px
position: absolute
top: 50%
left: 50%
transform: translate(-50%, -50%) rotate(45deg)
text-align: center
slots:
default:
- component: Label
config:
text: =items[props.setPointItem].state.split(' ')[0]
style:
font-size: "=props.size ? (Number(props.size)*0.04) +'px' : '14px'"
color: white
font-weight: bold
- component: f7-block
config:
class: center
style:
margin-top: 0px
position: absolute
width: "=props.size ? (Number(props.size)*0.65) +'px' : '65%'"
height: "=props.size ? (Number(props.size)*0.65) +'px' : '65%'"
background: "=props.colorControlRing ? props.colorControlRing : 'rgb(227, 228, 237)'"
animation: bound-in 0.6s ease forwards
top: 50%
left: 50%
transform: translate(-50%, -50%)
border-radius: 50%
box-shadow: 0px 15px 35px 11px rgba(46, 44, 58,0.60)
slots:
default:
- component: oh-toggle
config:
visible: "=props.toggleItem ? true : false"
item: =props.toggleItem
style:
position: absolute
bottom: 0%
left: 50%
transform: translate(-50%,-50%)
color: "=props.colorButton ? props.colorButton + ' !important': ''"
- component: oh-icon
config:
visible: "=props.windowItem ? true : false"
icon: "=(items[props.windowItem].state === 'OPEN') ? 'window-open' : 'window-closed'"
style:
position: absolute
bottom: 40%
left: 50%
transform: translate(-50%,-50%)
width: 20%
height: 50%
- component: oh-button
config:
visible: "=props.modeItem ? true : false"
item: =props.toggleItem
text: =items[props.modeItem].state
style:
position: absolute
bottom: 5%
left: 50%
transform: translate(-50%,-50%)
color: "=props.colorButton ? props.colorButton + ' !important': ''"
- component: oh-button
config:
style:
--f7-button-hover-bg-color: transparent
--f7-button-pressed-bg-color: transparent
width: 30%
height: 50%
position: absolute
margin-top: 0px
top: 50%
left: 10%
transform: translate(-50%, -50%)
color: "=props.colorButton ? props.colorButton : ''"
action: command
actionItem: =props.setPointItem
actionCommand: "=Number(items[props.setPointItem].state.split(' ')[0]) > Number(props.minTemp) ? Number(items[props.setPointItem].state.split(' ')[0]) - 0.5 : ''"
slots:
default:
- component: f7-icon
config:
size: "=props.size ? (Number(props.size)*0.075) : '30'"
style:
position: absolute
transform: translate(-50%, -50%)
top: 50%
margin-top: auto
f7: arrow_turn_left_down
- component: oh-button
config:
style:
--f7-button-hover-bg-color: transparent
--f7-button-pressed-bg-color: transparent
width: 30%
height: 50%
position: relative
margin-top: 0px
top: 50%
left: 90%
transform: translate(-50%, -50%)
color: "=props.colorButton ? props.colorButton : ''"
action: command
actionItem: =props.setPointItem
actionCommand: "=Number(items[props.setPointItem].state.split(' ')[0]) < Number(props.maxTemp) ? Number(items[props.setPointItem].state.split(' ')[0]) + 0.5 : ''"
slots:
default:
- component: f7-icon
config:
size: "=props.size ? (Number(props.size)*0.075) : '30'"
style:
position: absolute
transform: translate(-50%, -50%)
top: 50%
margin-top: auto
f7: arrow_turn_right_up
- component: f7-block
config:
class: small
style:
margin-top: 0px
position: absolute
width: "=props.size ? (Number(props.size)*0.375) +'px' : '57.6%'"
height: "=props.size ? (Number(props.size)*0.375) +'px' : '57.6%'"
background: "=props.colorCenter ? props.colorCenter : 'rgb(248, 249, 250)'"
text-align: center
animation: bound-in-small 0.6s ease forwards
top: 50%
left: 50%
transform: translate(-50%, -50%)
border-radius: 50%
box-shadow: 0px 5px 10px 5px rgba(96, 93, 111,0.19)
slots:
default:
- component: f7-block
config:
class: heat
style:
font-size: "=props.size ? (Number(props.size)*0.0375) +'px' : '14px'"
color: "=props.colorTypo ? props.colorTypo : 'rgb(87, 84, 95)'"
font-weight: 300
slots:
default:
- component: Label
config:
text: =props.location
- component: f7-block
config:
class: heat
style:
font-size: "=props.size ? (Number(props.size)*0.1125) +'px' : '2.5em'"
color: "=props.colorTypo ? props.colorTypo : 'rgb(87, 84, 95)'"
font-weight: 300
slots:
default:
- component: Label
config:
text: "=props.unit ? items[props.setPointItem].state.split(' ')[0] + '' + props.unit : items[props.setPointItem].state.split(' ')[0]"
- component: oh-image
config:
url: https://community-openhab-org.s3-eu-central-1.amazonaws.com/original/2X/7/7d388a86c95471f89b1bb911d96d7609a3e3a059.svg
style:
position: absolute
transform: translate(-50%)
left: 50%
width: 40%
