Design Pattern: Gate Keeper

Tags: #<Tag:0x00007f616fd17090>

Please see Design Pattern: What is a Design Pattern and How Do I Use Them for a desciption of DPs.


Problem Statement

There are some technologies that are sensitive to receiving multiple commands too close together. When they occur too close together commands get dropped or other problems may occur. Insteon and 433MHz are two such technologies with this problem.


Centralize all the communication with these technologies into a single gatekeeper and add delays between each command sent to the devices there so no two commands, regardless of their target device, ever get sent too close together.


We can take advantage of Design Pattern: Associated Items and Design Pattern: Encoding and Accessing Values in Rules to make a generic solution.

Note: The code below depends on the the WirelessDevice Items to be persisted.


Group WirelessDevices
Switch WirelessDevice_xxxxx_1 (WirelessDevices)
Switch WirelessDevice_xxxxx_2 (WirelessDevices)



For the Python version I’ve created a reusable class you can find and install from

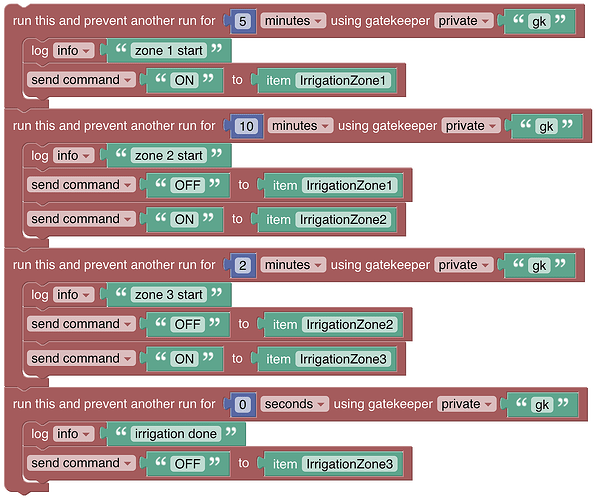

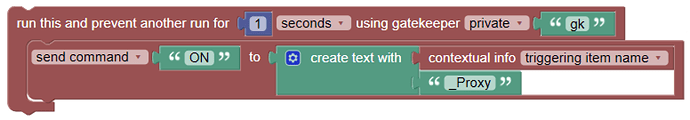

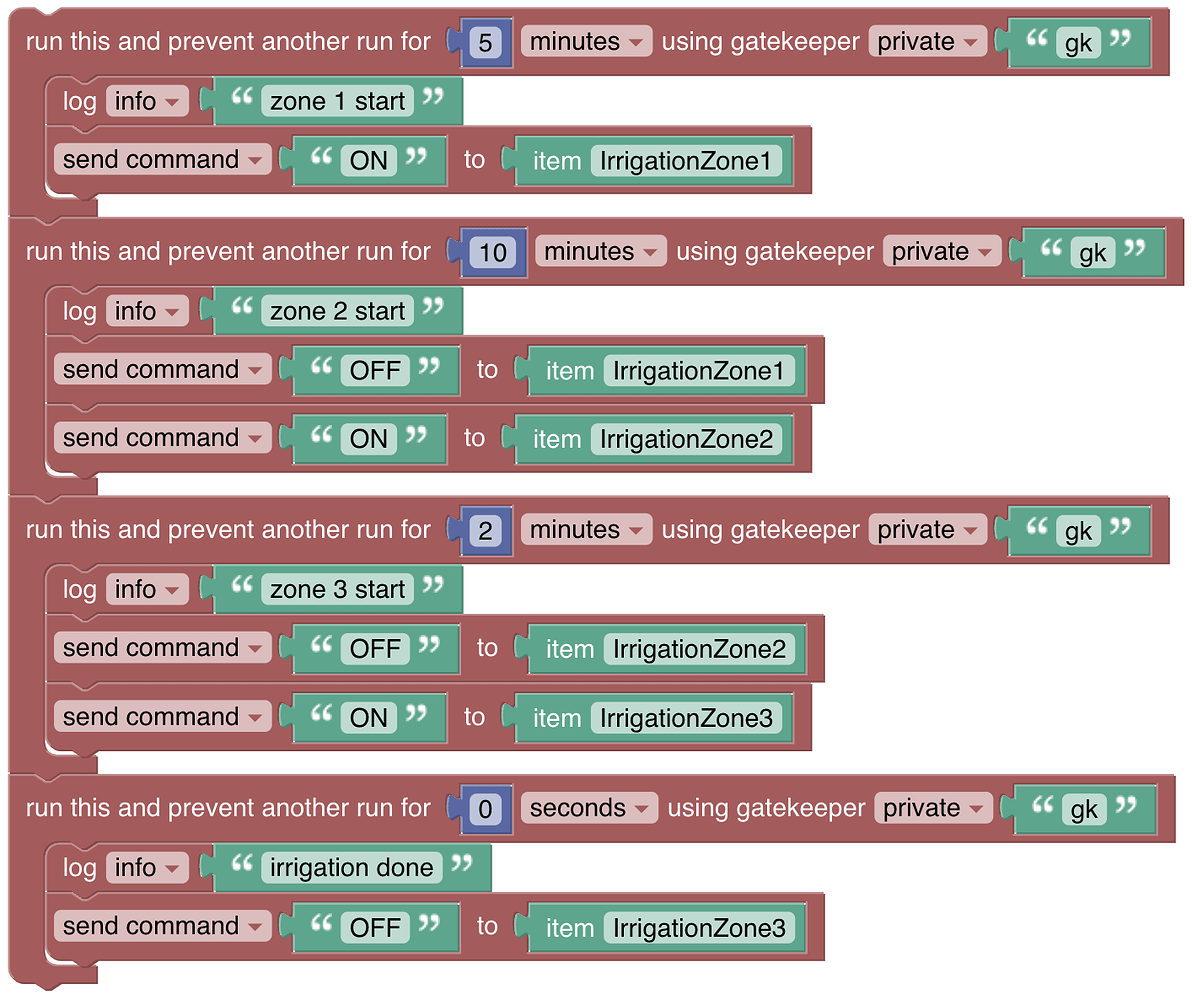

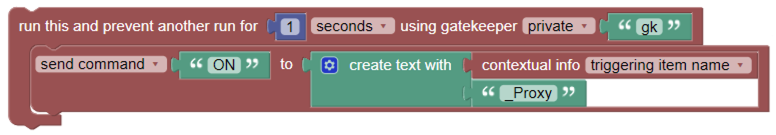

Rules DSL

import java.util.concurrent.ConcurrentLinkedQueue

val Queue<String> commands = new ConcurrentLinkedQueue()
var Timer timer = null
var lastCommand = now.minusSeconds(1).millis

rule "433MHz Controller"
    Item WirelessController received command

    if(timer === null) {
        timer = createTimer(now, [ |
            if(commands.peek !== null) {
                val cmd = commands.poll
                val results = executeCommandLine(cmd, 5000)
                logDebug("433", results)
                lastCommand = now.millis

            val deltaTime = now.millis - lastCommand
            timer.reschedule(now.plusMillis(if(deltaTime<100) 100-deltaTime else 0) // 0 will reschedule the timer to run immediately

rule "Outlet A"
    Item Outlet_A received command
    if(receivedCommand == ON) WirelessController.sendCommand(“433-send xxxxx 1 1”)
    else WirelessController.sendCommand(“433-send xxxxx 1 0”)

Theory of Operation:
Rather than forcing the Rules to queue up and consume a runtime thread while previous calls to the Rule are sleeping or running we create a queue of the commands and spin up a looping timer that works off the queue.

First in the Rule we add the command to the queue. The queue is thread safe and non-blocking so there is no waiting around for a lock. Next if the looping timer doesn’t exist we create it. This timer runs forever, checking every 100 milliseconds for a new command. If one is on the queue we pull it off the queue and call executeCommandLine. Then we reschedule the timer to run again in the lesser of 100 milliseconds or 100 milliseconds minus the amount of time that it too executeCommandLine to run.

Advantages and Disadvantages


  • Lets you solve a technical problem with certain technologies in OH Rules
  • Does not tie up a Rule runtime thread sleeping
  • Can be used to schedule a series of events (particular the Python version), such as turning on a stereo receiver and waiting a couple seconds before starting the audio stream to it, giving it time to start up before playing the audio.


  • Ideally this should be implemented in the binding for the technology when used to prevent spamming the devices, though that isn’t possible when you are using Exec binding or the like
  • The Rules DSL version requires creating a separate set of Rules for each Gatekeeper required (e.g. one for TTS say commands and other for Hue bulbs).

Related Design Patterns

Design Pattern How It’s Used
Design Pattern: Separation of Behaviors Gate Keeper is a specific implemenation of Separation of Behaviors
Design Pattern: Proxy Item The WirelessController and Device Items
Design Pattern: Associated Items Mentioned in the description but not used above
Design Pattern: Encoding and Accessing Values in Rules The naming for the device Items
Design Pattern: Looping Timers The implementation of the loop that works off the queue in the Rules DSL version

Edit: Removed all the examples that require a Reentrant lock as I deem them unsafe to use under any circumstances.
Edit: Updated the Python version so each command can have it’s own delay. This works better with the say Action.
Edit: Removed the source code for the Python version and point to my github repo which will always have the latest version and will have other languages supported in the future.

How to wait in a rule?
[SOLVED] Rollershutter group & rule
Multiply Triggered Rule
[SOLVED] Error: Rule '<rulename>': null
Callback / wait for other rule
[SOLVED] Multiple ON and OFF's for crappy 433MHz-devices?
Control a new air conditioning using Exec
Make a fan use only OFF, Low, Medium, ON
Design Pattern: Rule Latching
[jsr223] New Python Community Library Candicates to test
[SOLVED] Lambda Functions or similar: Create an array / map to iterate through to send 'timed' commands
Broadlink binding for RMx, A1, SPx and MP. Any interest?
Rules behavior changed after update from 2.3 to 2.4
Using scripts to control lights
Limiting the number of telegram messages
sendHttpGetRequest() and packet loss
Rollershutter Group - Display open shutters
[SOLVED] Rollershutter group & rule
Locks in Openhab 2.4+ (Rules stopped working)
[SOLVED] OpenSprinkler Irrigation and Cascading timers rule
Why have my Rules stopped running? Why Thread::sleep is a bad idea
RfLink binding - Sending to multiple devices unreliable
[SOLVED] Multiple ON and OFF's for crappy 433MHz-devices?
What's the meaning of the duty cycle value?
My diy HVAC zoning setup
Serial protocol which acknowledges by reception via rules
How to setup a FIFO queue to send commands
Unreliable rule triggering (cron) with openhab 2.3
Openhab works slow, CPU of the RPI is high
[SOLVED] Presence with Android after using Iphone
How to send IR commands synchroneously
ReentrantLock - correct use or not?
Openhab 2 Squeezebox Text to speech?
Why have my Rules stopped running? Why Thread::sleep is a bad idea
Timeout notifications
Rules / functions / scripts: best approach
[SOLVED] Error: Rule '<rulename>': null
How to queue SMTP and OpenHAB Notifications if services are Offline?
Squeezebox binding: notifications and concurrency issue
Stop timer and reset to null. Structure of rule okay?
Monoprice 6-zone Audio amp items, sitemap & rules
433 MHz sendCommand problem
Rules stop executing after a while
Heatmiser PRT Wifi Thermostats - Rules, Sitemap, Scripts etc
Patterns proposal: item states delay management and items dependencies (cascading)
openHAB - Filtering event logs
Hue bulbs and groups
HUE and Ikea
Exec execute commands with two parameters?
Sending off command to group of lights results in some lights staying on, with missing "changed to" log message
[SOLVED] SendCommand or postUpdate to item with two or more variables
[Advice Needed] Say() Via VoiceRSS
Say() can not say two or more phrases
Looking for a way to allow command playSound to complete before continuing
Design Pattern: Cascading Timers
Xiaomi Mi IO Binding - String-Item and received command rule problem
[SOLVED] Delay for group commands

Hadn’t seen that approach to locking rules before - very neat (I’d always used a variable to achieve that indirectly).

Hi Rich.
Want to use it for my hue lights.

Group:Switch:OR(ON, OFF) all_lights  "Wohnzimmer_Sofa"
Switch Licht_EG_Sofa1_Switch         "Licht Sofa1_Switch"     (all_lights)         {channel="hue:0210::8:color"}
Switch Licht_EG_Sofa2_Switch         "Licht Sofa2_Switch"     (all_lights)         {channel="hue:0210::4:color"}
Switch Licht_EG_Sofa3_Switch         "Licht Sofa3_Switch"     (all_lights)         {channel="hue:0210::5:color"}

Can you give me an example how i can use your rule?
Thank you very much.

The complex example is all that you need. If you have specific problems I’d love to help but I’m not inclined to write someone else’s rules if they haven’t even attempted writing their own.

Yes, of course. I understand.
The problem is that i don’t understand the thing with device ID and controller ID.

2018-07-16 02:16:27.150 [WARN ] [] - Execution failed (Exit value: -559038737. Caused by Cannot run program "zigbee-send" (in directory "."): error=2, No such file or directory)
import java.util.concurrent.locks.ReentrantLock
var lock = new ReentrantLock
var lastCommand = now.millis
val commandDelay = 100 // experiment to find the lowest number that works

rule "A WirelessDevice received a command"
    // We can't trigger the rule using WirelessDevices received update because there is no good way to handle the multiple rule triggers
    Item Licht_EG_Sofa1_Switch  received command or
    Item Licht_EG_Sofa2_Switch  received command or
    Item Licht_EG_Sofa3_Switch  received command

    // Get the controller ID and device ID
    val split ="_")
    val controller = split.get(1)
    val device = split.get(2)
    val command = if(receivedCommand == ON) "1" else "0"

    // Ensures only one instance of the Rule can run at a time
    // We do this after the lines above so the delay below does not interfear with the Rule's ability to
    // determine which Item triggered the Rule
    try {
        // Sleep if the last command happened too close to now, but only sleep just long enough
        val deltaTime = now.millis - lastCommand // how long since the last call to executeCommandLine
        if(deltaTime <= commandDelay) Thread::sleep(deltaTime)

        val results = executeCommandLine("zigbee-send " + controller + " " + device + " " + command, 5000)
        lastCommand = now.millis

        logDebug("zigbee", results)
    catch(Exception e) {
        logError("zigbee", "Error handling zigbee command: " + e)
    finally {

That warning is coming from the program you are running (zigbee-send) not the rule. You probably have to provide the full path to the command.

Look at How to solve Exec binding problems

Oh, now i understand the “executeCommandLine” part. :joy:
Thanks and greetings,

Shouldn’t be there:
sleep(commandDelay - deltaTime) ?

If the deltaTime since lastCommand is only 20 ms, then we wait only another 20 ms, which is 40 ms total and this does not help us to reach the desired 100 ms delay.

That is correct. We need to wait the full commandDelay time at a minimum.

Yeah, first post here! Just wondering, I already had such a pattern with a queue in mind as I experience pretty much the same problem with my 433Mhz RFLink bridge.
However, I would prefer this kind of message handling would be realized correctly inside the bindings. Eventually these are the controller of the devices and have to take care of the message flow, not the rules. Why can’t we just state such a behavioral requirement for the bindings, specifically those with such problematic protocols? The delay could be exposed as a configurable parameter then. (I plan to try this way with a fork of the RFLink binding).

All I can say is it’s because the binding developers didn’t implement it that way.

Well, that’s unfortunate. However, when it comes to the RFLink binding there seem to exist some tiny delay within the serial communication. But it’s not configurable. Maybe worth to expose it to skip the hassle inside the rules…

Hello all,
I hope a comment on this pattern is a good place to put my question - if it is not, please let me know. I will open up a new thread then.

My goal

I want to send out notifications via telegram from rules

My approach

  • proxy string TNotificationViaTelegram for the message to be sent
  • any rule may set it, e.g. TNotificationViaTelegram.sendCommand(tMsg)
  • a central rule which reacts to changes in this item:
rule "Send Notification over Telegram"
  //notify via Telegram
    Item TNotificationViaTelegram received update
    if (SNotificationViaTelegram.state != ON) {

    val String msg = TNotificationViaTelegram.state.toString
    sendTelegram("HomeInfo", msg)


In the Telegram message stream, I sometimes miss a message and instead get the same message twice in quick succession.
I am pretty certain, that this is what is going wrong:

  1. rule A updates TNotificationViaTelegram
  2. rule B updates TNotificationViaTelegram (in quick succession - this e.g. happens by rules which react to presence)
  3. rule Send Notification over Telegram gets triggered by the rule A update, but the actual sending happens, rule B has already changed the content - ergo the rule B message gets sent
  4. rule Send Notification over Telegram gets triggered by the rule B update, the rule B message gets sent

Solution approaches

Note: these are the ones I can think of, I have not tried out any of them yet - still theorizing :wink:

  1. Add a Thread::sleep after every instance of TNotificationViaTelegram.sendCommand(tMsg)

    • Unsexy approach, as it is not centralized and I have to think of it whenever I sent a message
    • I don’t think it will work 100%, as when a certain event (presence) triggers two rules, these two rules might still update TNotificationViaTelegram at nearly the same point of time. This would be less likely to happen, if I use randomized sleep-times, which makes working with this approach even more complicated.
  2. Approach as suggested in the “Simple Example”

    • If I understand correctly, this would not solve my problem (or would it??).
      I believe the approach makes a rule a singleton. But my problem is not the rule running in parallel, but that TNotificationViaTelegram is changed while the rule is running.
  3. Approach as suggested in the “Complex Example using Queues”

    • In essence, a FIFO queue is what would solve my problem. The way the example is set up though, the queue does not span across mutiple rules-files - correct?

So what is your view on this? Can anyone give me some pointers how to get this done?
Maybe there is a simple mechanism which I am use but don’t know or fail to recognize?

By the way: @rlkoshak - I have been using OpenHab for ca. 2 years now and your posts in this forum have been tremendously helpful for my understanding. I am amazed how often you find the time to take part in a discussion and help out with your knowledge and views.
Thank you very much for that!

This is probably not a Gate Keeper problem, though it might be solvable with it, though I don’t think that’s necessary.

Use commands instead of updates to trigger your Rule. Command makes sense here as you are activating an external service, not just updating OH’s internal state. Then, when you use received command, you can use the receivedCommand implicit variable which will always be what was commanded regardless of timing.

Option won’t do anything because that Thread::sleep won’t affect the other Rules that call the sendCommand. It will just delay when that one instance of the Rule will exit.

Option two and three won’t really solve your problem because your actual problem, if I understand correctly, is that when two updates occur too close together one of them get’s overwritten before it can be processed by the Rule. Using a lock or a timer or the queue will only add delays between calls to telegram so you don’t bombard the service with too many calls all at the same time. But the data problem you are seeing would still be a problem.

You might still want to use a Gate Keeper to spread out the messages sent to Telegram, but you need to use commands in order to keep the states from overwriting each other.

You are most welcome! I learn by helping and contributing to the forum is my way of giving back to the community.

1 Like

@rlkoshak: so you offer real-time problem solving services - cool :wink: ! In my job, I have access to some paid “premium support services” which are nowhere as good (or quick) as you are :smiley:

Thanks - I fully understand what you say. I even remember reading about the receivedCommand variable at some point. But I never used it and forgot about it.
I’ll go that way - I am very confident it’ll work!

You just happened to catch me when I was online. Though when I’m tagged I get an email and can often reply from my phone, which was the case here.

Edit: @5iver solved my problem and I have corrected the code so that one can copy&paste items and code if one have a similar use case. @rlkoshak thank you for this great design pattern!

Hi @rlkoshak , this is the case with my sonos speakers, when there are multiple notifications to be played.
That’s why I try to use the complex example of your design pattern to manage playing notifications.
But there are errors in my openhab.log that I cannot solve and I couldn’t find a solution in the forum.

My items in file GateKeeperExamples.items

Group GrpMessages
Switch CreateMessage    "CreateMessage [%s]"    (GrpMessages)
String TextQueued       "TextQueued [%s]"       (GrpMessages)
String TextOutput       "TextOutput [%s]"       (GrpMessages)

My code in file GateKeeperExamples.rules

// IMPORTS **************************************************************************
    import java.util.concurrent.ConcurrentLinkedQueue

// GLOBAL VARIABLES ************************************************************
    val MyQueue = new ConcurrentLinkedQueue()    // Edited this line. The code causing the errror was: val Queue<String> MyQueue = new ConcurrentLinkedQueue()
    var Timer timer = null
    var lastCommand = now.minusSeconds(1).millis

    var MyMessageCounter = 0

// RULES ****************************************************************************

rule "rGateKeeperExample_CreateMessage"
    Item CreateMessage received command
    MyMessageCounter = MyMessageCounter + 1     // MyMessageCounter see global variables section
    val MyMessage = "Message no. " + MyMessageCounter.toString + " , date = " + now.toString
    TextQueued.sendCommand( MyMessage )
    logInfo("openhab", "New Message = " + MyMessage )
end // EndOfRule rGateKeeperExample_CreateMessage

rule "rGateKeeperExample_MessageOutput"
    Item TextQueued received command
    val String          MyLogFile = "MySeparateLogFile"   // if 'MySeparateLogFile' does not exist, logging goes into openhab.log (to create a separate logfile see
    val DateTime        MyLogDate = now
    val StringBuilder   MyLogMessage = new StringBuilder
    MyLogMessage.append( "\n" + "\n" + " ----------   rGateKeeperExample_MessageOutput v001   ----------" + "\n" + "\n" )
    MyLogMessage.append( "    MyLogDate = " + MyLogDate.toString + "\n" + "\n" ) // ("yyyy-MM-dd'T'HH:mm:ss.SSSZ")

    MyQueue.add(receivedCommand.toString)  //
    MyLogMessage.append( "    TextQueued = " + receivedCommand.toString + "\n" )

    if(timer === null) {
        timer = createTimer(now, [ |
            if(MyQueue.peek !== null) {    //
                val TmpText = MyQueue.poll     //
                TextOutput.sendCommand( TmpText.toString )
                // say(TextOutput, "voicerss:deDE", "sonos:PLAY1:SonosLiving", new PercentType(25))
                MyLogMessage.append( "       TextOutput = " + TmpText.toString + "\n" )
                lastCommand = now.millis
            timer.reschedule(now.plusMillis(60000))  // output of next message after 60s
        ] )
    logInfo( MyLogFile, MyLogMessage.toString )
end // EndOfRule rGateKeeperExample_MessageOutput

My openhab.log

2019-03-28 20:58:18.129 [INFO ] [el.core.internal.ModelRepositoryImpl] - Refreshing model 'GateKeeperExample.rules'
2019-03-28 21:25:55.014 [INFO ] [el.core.internal.ModelRepositoryImpl] - Validation issues found in configuration model 'GateKeeperExample.rules', using it anyway:
The field Tmp_GateKeeperExampleRules.MyQueue refers to the missing type Object
The field Tmp_GateKeeperExampleRules.MyQueue refers to the missing type Object
The field Tmp_GateKeeperExampleRules.MyQueue refers to the missing type Object
2019-03-28 21:25:55.209 [INFO ] [el.core.internal.ModelRepositoryImpl] - Refreshing model 'GateKeeperExample.rules'
2019-03-28 21:26:26.329 [INFO ] [lipse.smarthome.model.script.openhab] - New Message = Message no. 1 , date = 2019-03-28T21:26:26.320+01:00
2019-03-28 21:26:26.359 [ERROR] [ntime.internal.engine.RuleEngineImpl] - Rule 'rGateKeeperExample_MessageOutput': 'add' is not a member of 'Object'; line 38, column 5, length 37
2019-03-28 21:26:28.888 [INFO ] [lipse.smarthome.model.script.openhab] - New Message = Message no. 2 , date = 2019-03-28T21:26:28.875+01:00
2019-03-28 21:26:28.915 [ERROR] [ntime.internal.engine.RuleEngineImpl] - Rule 'rGateKeeperExample_MessageOutput': 'add' is not a member of 'Object'; line 38, column 5, length 37
2019-03-28 21:26:29.725 [INFO ] [lipse.smarthome.model.script.openhab] - New Message = Message no. 3 , date = 2019-03-28T21:26:29.719+01:00
2019-03-28 21:26:29.757 [ERROR] [ntime.internal.engine.RuleEngineImpl] - Rule 'rGateKeeperExample_MessageOutput': 'add' is not a member of 'Object'; line 38, column 5, length 37

I think the info in openhab.log
The field Tmp_GateKeeperExampleRules.MyQueue refers to the missing type Object
indicates, that there is something wrong with the declaration of MyQueue in this line of my code
val Queue<String> MyQueue = new ConcurrentLinkedQueue()

Every time the rule is triggered I get this error
Rule 'rGateKeeperExample_MessageOutput': 'add' is not a member of 'Object'; line 38, column 5, length 37
which points to line 38 with this code MyQueue.add(receivedCommand.toString)

I couldn’t find a solution yet, so every help is appreciated.

My system is openhabian installed on raspberry pi:

  • Release = Raspbian GNU/Linux 9 (stretch)*
  • Kernel = Linux 4.14.79-v7+*
  • Platform = Raspberry Pi 3 Model B Rev 1.2*
  • openHAB 2.4.0-1 (Release Build)*

In DSL rules, only be as specific as you need to be.You shouldn’t get the error if you use this…

val MyQueue = new ConcurrentLinkedQueue()
1 Like

Many thanks, that is the solution.
Small cause, big effect!

If I have a rule using a GateKeeper (the complex example using queues), then one timer runs forever:
If a timer runs forever, does it mean, one thread is used forever?

If I have five rules, each using one GateKeeper:
Does the Rules DLS run out of threads?
